SS Fire + Smoke Seal

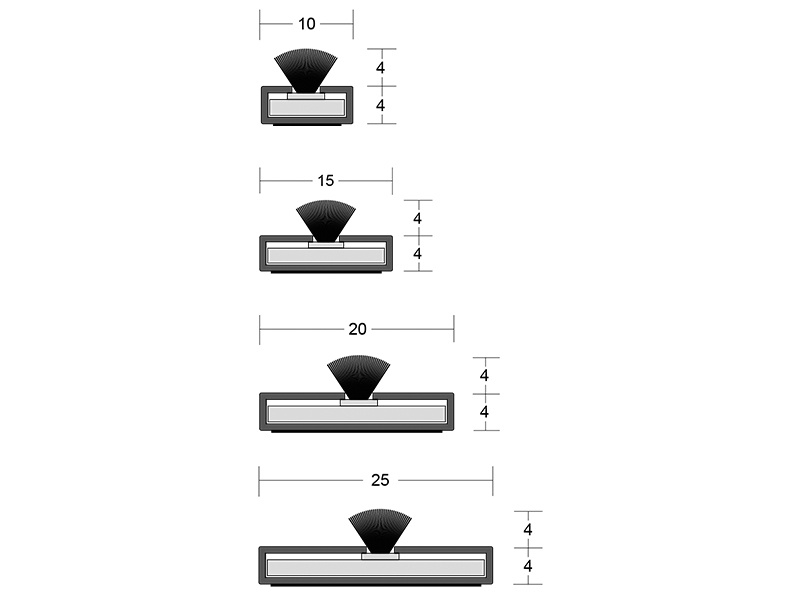

LP1004SS, LP1504SS, LP2004SS

  • LP1004SS
  • LP1504SS

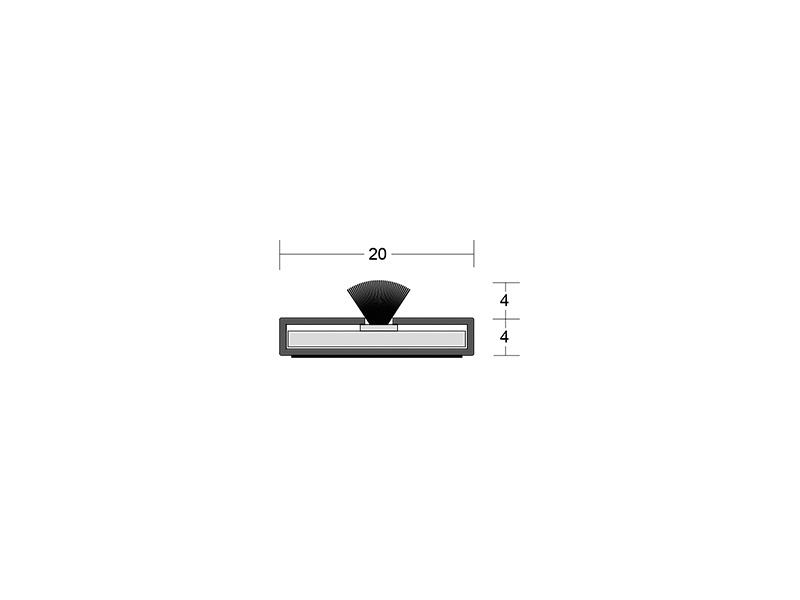

  • LP2004SS

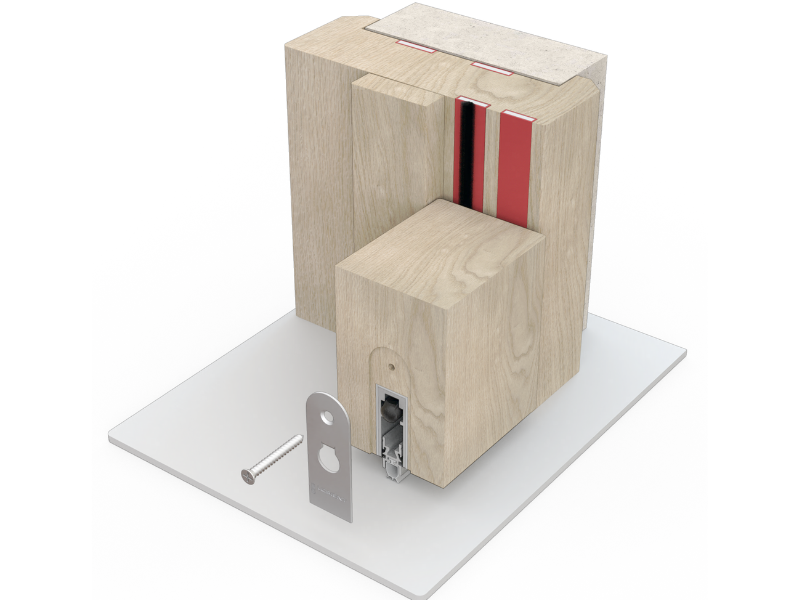

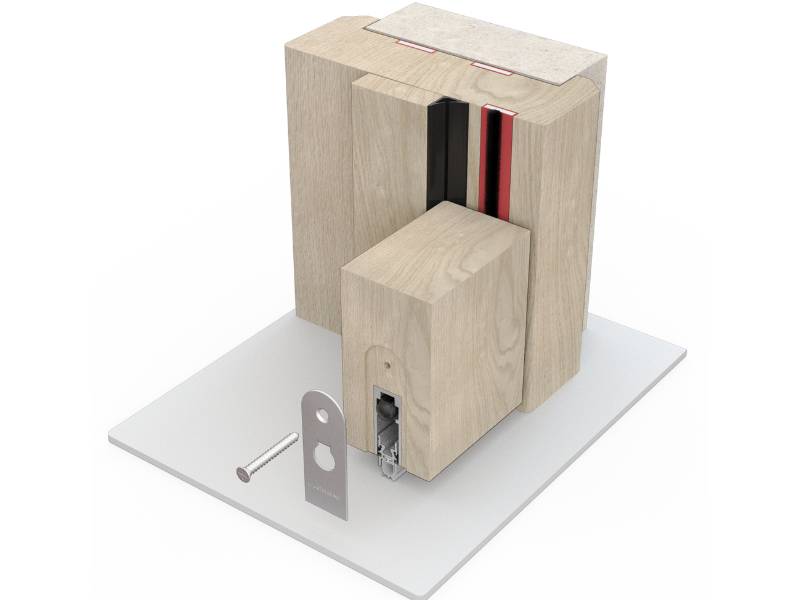

Our SS door seal with polypropylene brush pile offers fire + smoke protection with the added benefit of thermal containment. Available in a choice of sizes to cover 30 and 60 minute applications, the SS seal also includes integral antimicrobial protection.

Note: The limitations of the printing process mean the colours and finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.

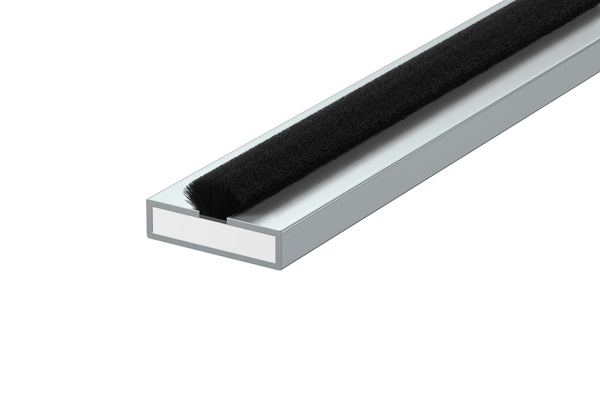

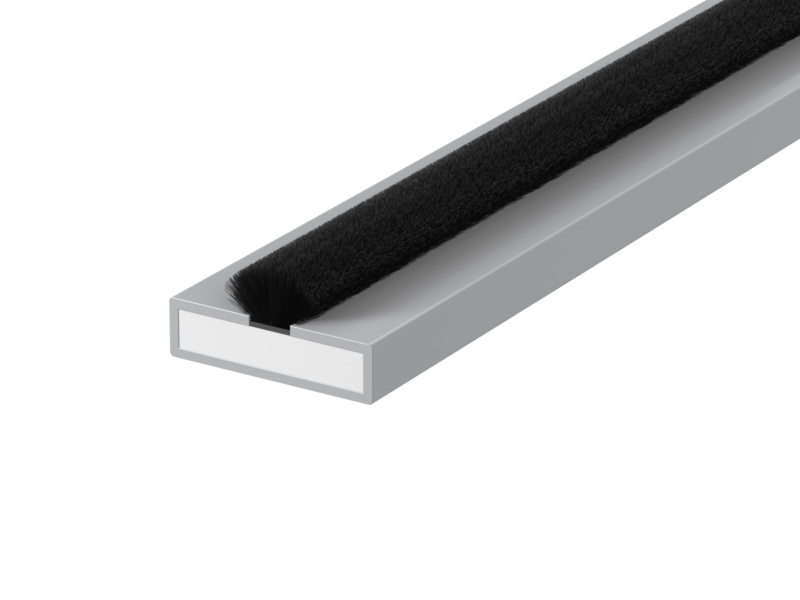

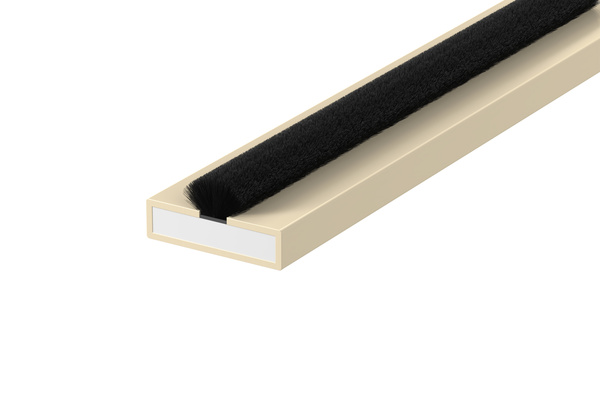

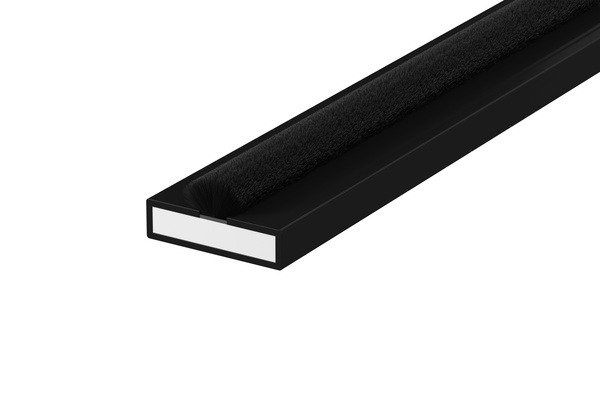

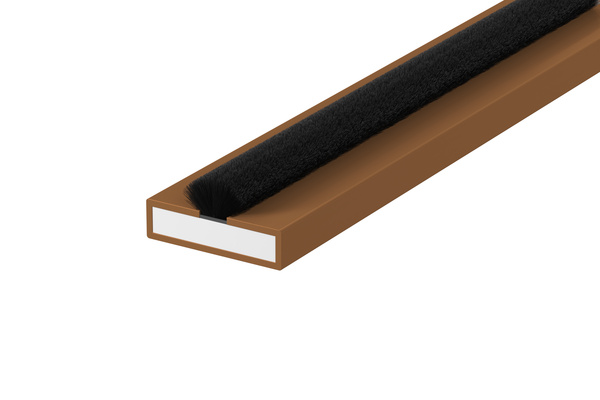

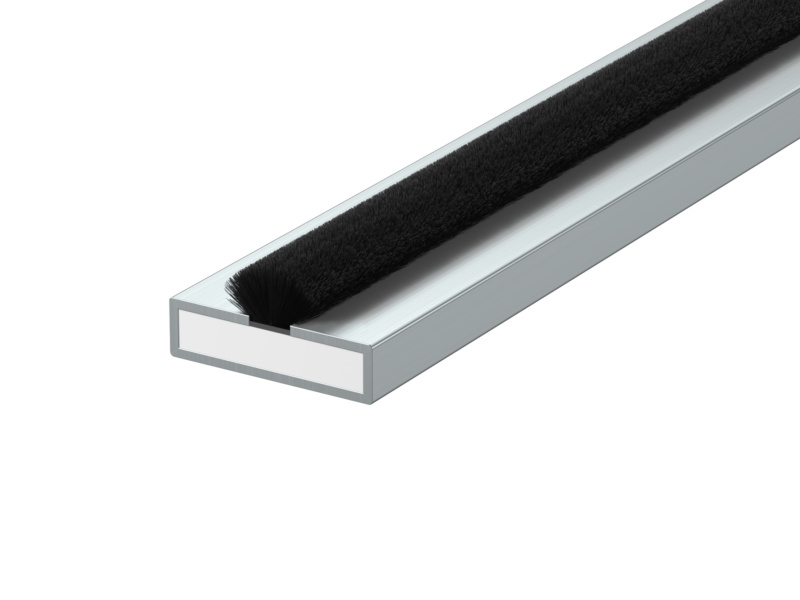

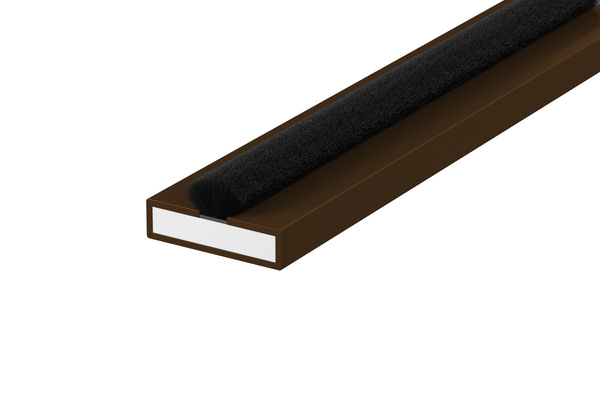

Colour

System specification

Property

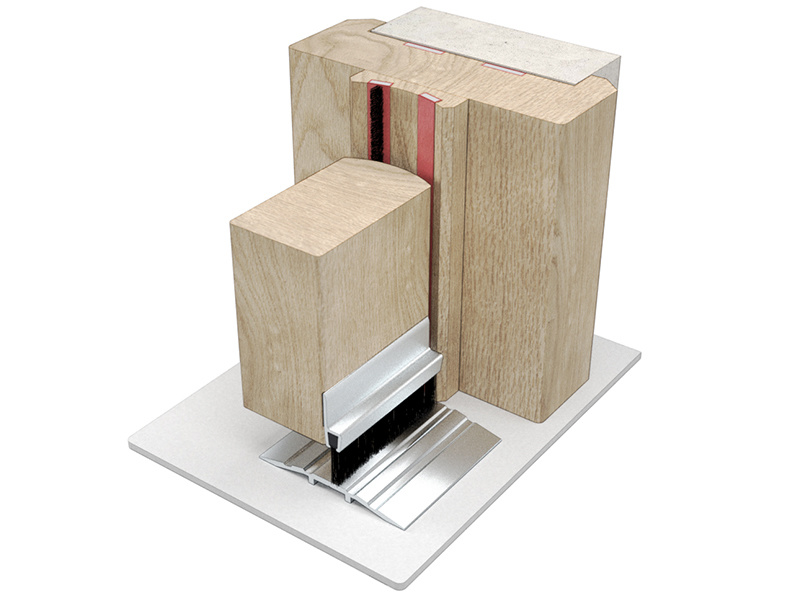

LOCATION Single + double leaf doors
MIN/MAX GAP SIZES 3mm/4mm
SEAL MATERIAL PVC encased sodium silicate + polypropylene brush pile (4mm or 6mm)

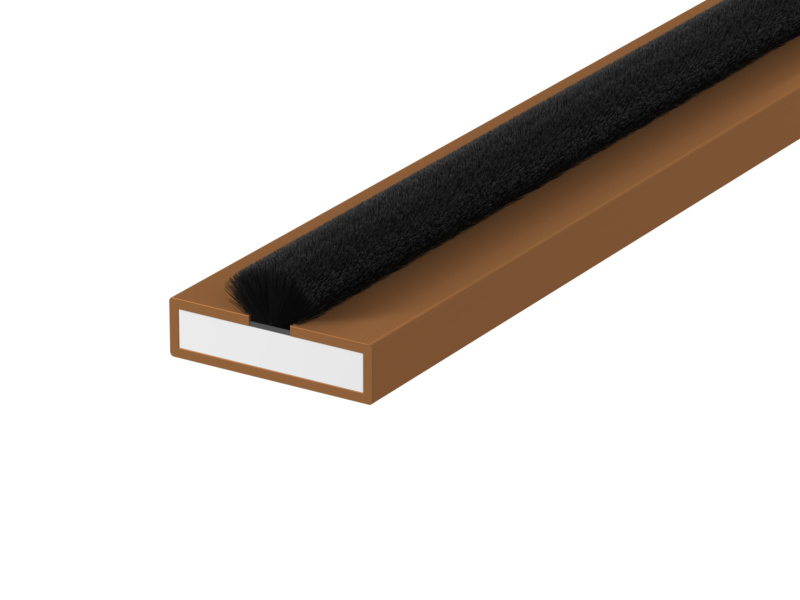

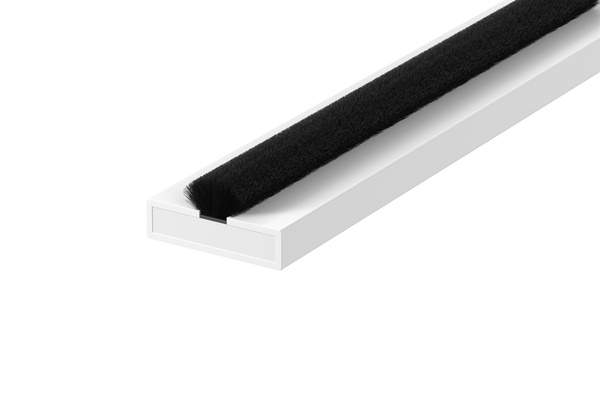

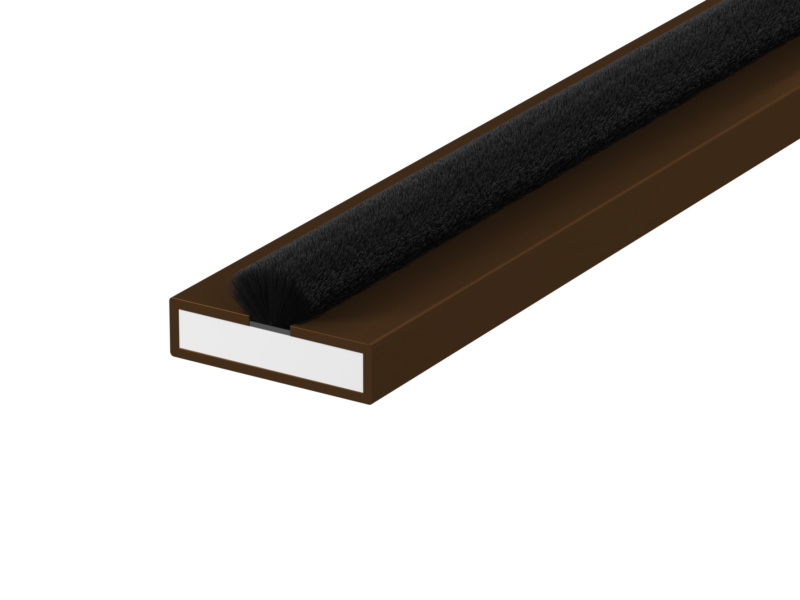

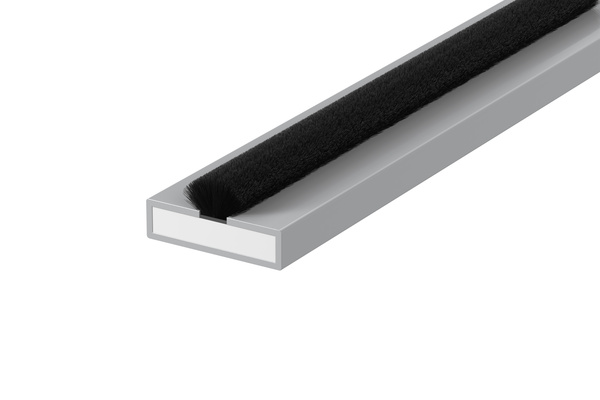

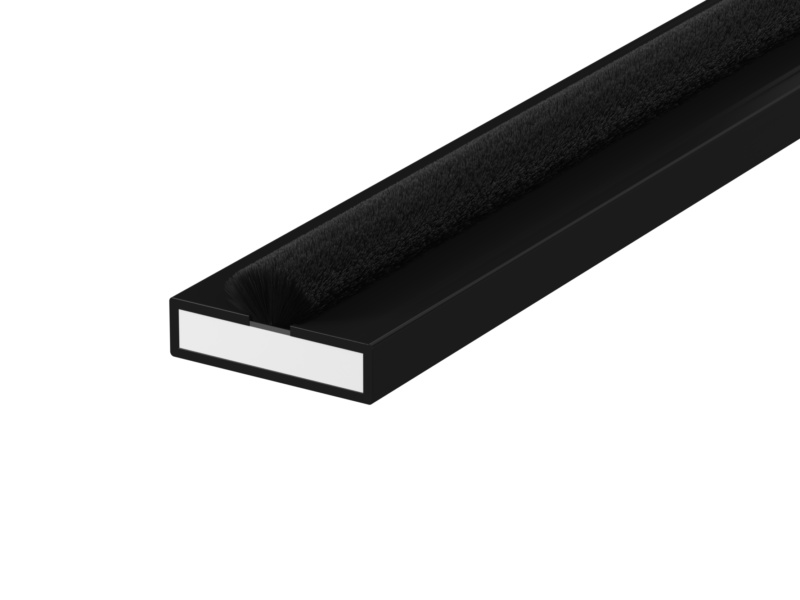

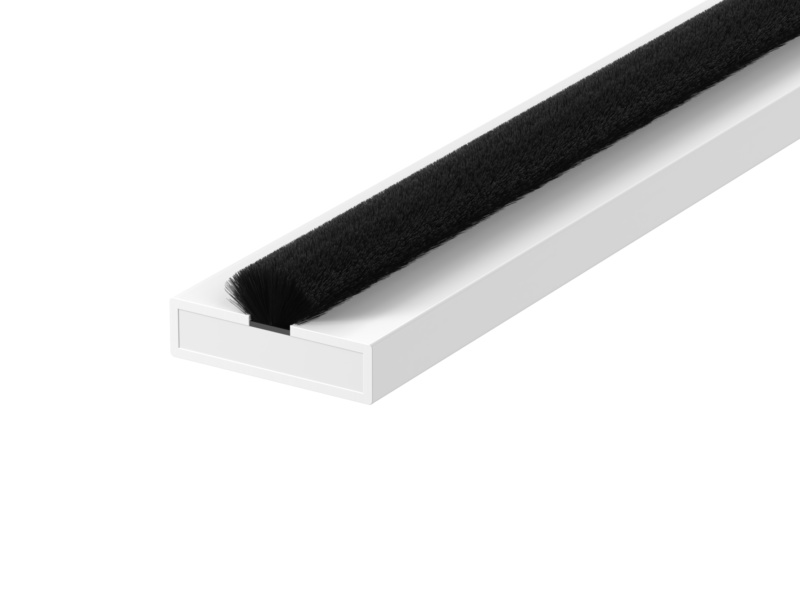

Standard Colours White, black, dark brown, light brown + grey. With black brush as standard

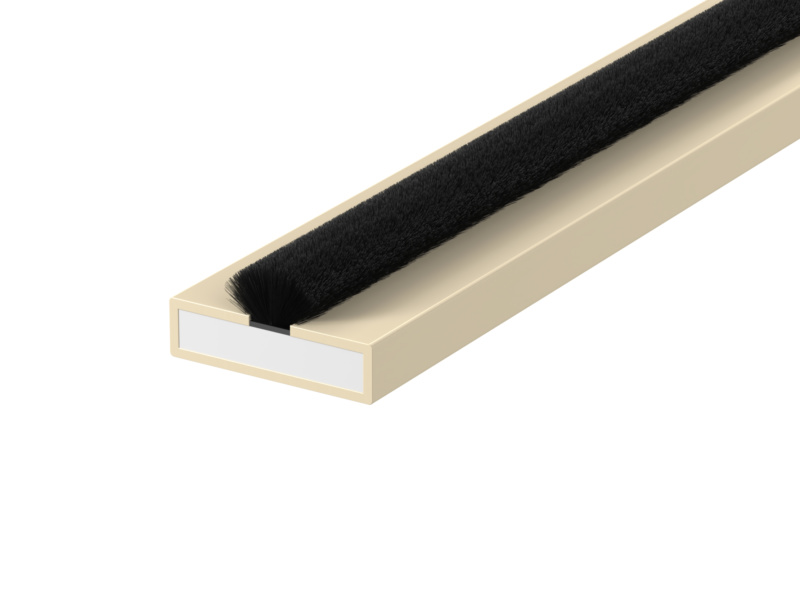

Non-standard finishes Cream, red, silver + woodgrains are subject to MOQs
STANDARD LENGTHS 1m + 2.1m. Other lengths available to special order
TEST EVIDENCE Fire: BS 476-22:1987 & BS EN 1634-1:2008. Smoke: BS 476-31.1: 1983 at ambient temperature. Assessment: CNA/F14171. Durability: 100,000 cycles
Performance Meets smoke requirement: BS 9999: 2017
CERTIFICATION
Certifire CF330 + CF341
BBA 92/2841
IFC FRPP454
