RF1™ 60 Minute Glazing System

Bead Applied System

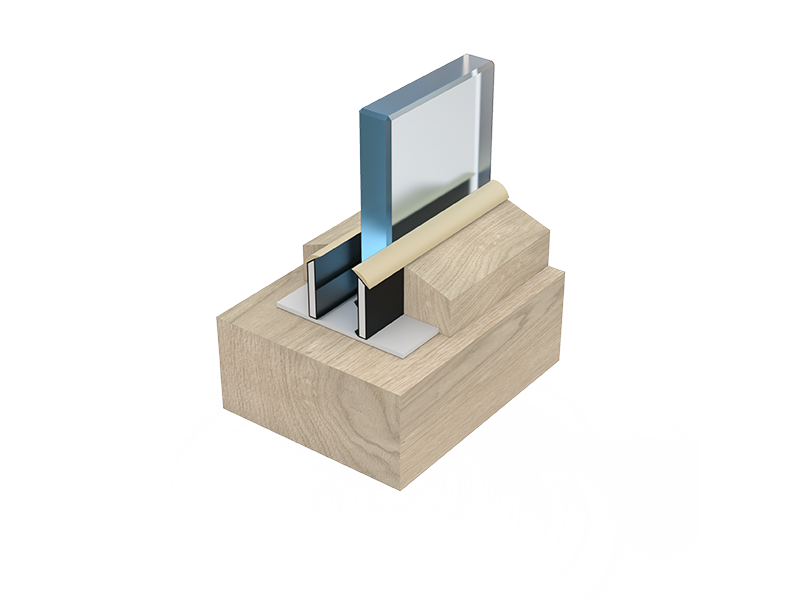

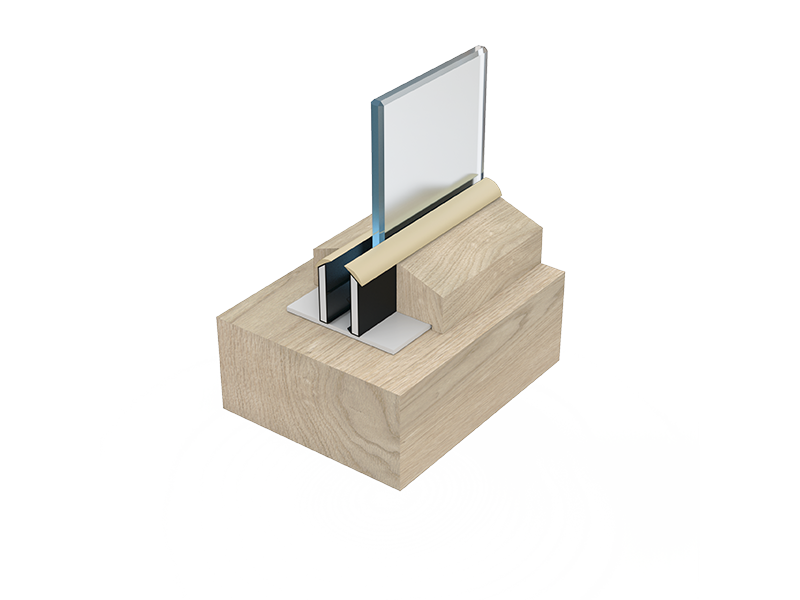

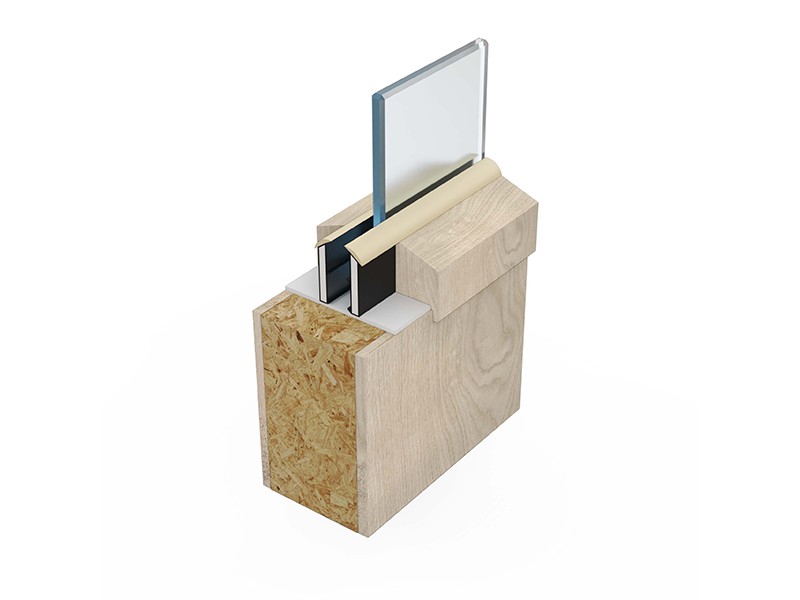

RF1™ is a versatile bead applied glazing system for 60 minute fire resistant doors + screens. Comprises a pair of bead applied intumescent glazing seals + an intumescent liner. With premium aesthetics, the caps are the only visible elements when fitted + a variety of colours are available to harmonise with the door.

View the RF1™ animation.

  • Request sample
Colour

System specification

Property
Application FD60 fire doors + screens
SEAL MATERIAL Sodium sillicate intumescent encapsulated in rigid PVC with flexible fins
Glass thickness Suitable for use with a varety of fire rated glass types for both doors + screens
Standard lengths 1 pack contains: 2 No. x RG2704 in 2.1m. 2 No. x B25402 in 1.050m. minimum order quanitity 10 packs
Finish Black profile with white, cream, grey, light brown, dark brown or black caps
Test evidence Fire: BS 476-22: 1987
CERTIFICATION
Certifire CF5033
