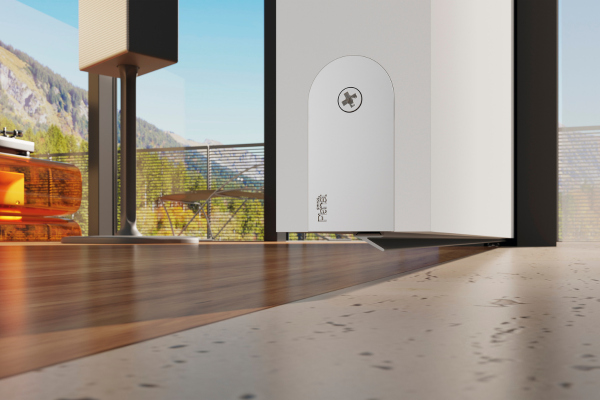

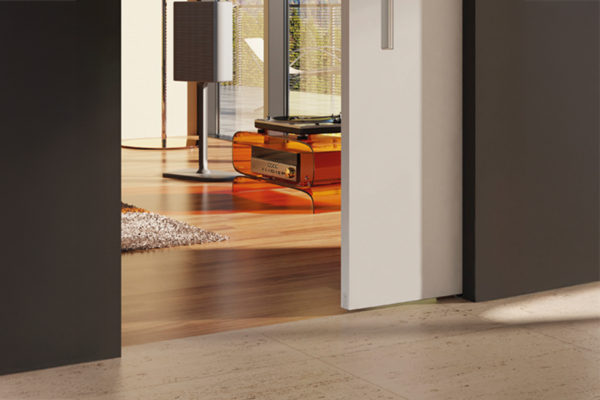

Planet SN drop seal for sliding doors
Mortised
A complete sealing solution for sliding doors. Designed for smooth, zero-force release, it eliminates the need for a lock or holding device. Its compact, space-saving design ensures seamless operation, while the high-efficiency mechanism enables parallel lowering and automatic compensation for sloping floors. With optimal sealing, it achieves an acoustic insulation value of up to 44dB. Provides a seal height of 7–16mm, with adjustable lateral protrusion for a precise fit.
System specification
| Property | |
|---|---|
| Profile size | 22 x 30 mm |
| Profile material | Aluminium carrier with high-quality silicone gasket |
| Max. drop height | 7 – 16 mm |
| Sound absorption value | up to 44 dB at ground air 7 mm |
| Standard length | 800mm, 925mm, 1050mm, 1175mm, 1300mm, 1425mm, 1550mm, 1675mm. Effective seal length: ordered dimension (Y) -5 mm (suitable for sliding door width) |
| Non-standard length | Sizes up to 6m are available to special order |
| Can be shortened | 125 mm (+ max. 45 mm release side) |
| Incl. accessories | Planet floor guide set SN, short, DIN R or DIN L, for ground air 7–10 / 10–13 / 13–16 mm, Planet assembly set SN, DIN R or DIN L |
