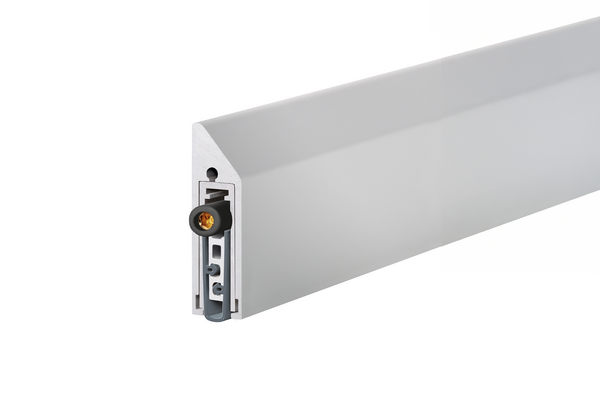

Planet KG-SM set narrow drop seal
Face-fixed
A slimline, face-fixed automatic drop seal designed for glass, timber, metal, and PVC doors. Its ultra-narrow 11.5mm profile makes it ideal for minimalistic applications. Featuring a high-efficiency mechanism with a single-sided trigger, it enables parallel lowering and automatic compensation for sloping floors. Suitable for doors with a seal height of up to 16mm. Fixing tape allows for quick and easy installation on new and existing doors. An optional bevel lip is available for uneven floors, accommodating gaps of up to 20mm.
System specification
| Property | |
|---|---|
| Profile size | 11.5 x 38 mm |
| Max. drop height | 16mm |
| Profile material | Aluminium |
| Seal profile | high-quality silicone |
| Sound absorption value | up to 48 dB at ground air 7 mm |
| Standard lengths | 459mm, 584mm, 709mm, 834mm, 959mm, 1084mm, 1209mm, 1334mm, 1459mm |
| Non-standard lengths | Sizes up to 6m are available to special order |
| Can be shortened | max. 125 mm |
| Incl. accessories | Complete set consisting of drop-down seal, protection profile with prepared double adhesive tape, assembly adhesive, cover plates, stopping plates, fixing screw, optical film, Allen key |
