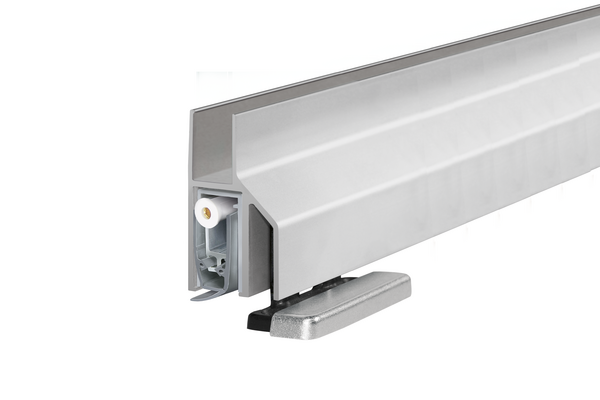

Planet KG-SL10 drop seal for sliding glass doors
face-fixed
An automatic drop seal designed for 10mm glass sliding doors. Featuring a high-efficiency mechanism with a single-sided trigger, it enables parallel lowering and automatic compensation for sloping floors. Provides sound absorption of up to 44dB, with a drop height of up to 18mm. A durable silicone lip ensures reliable sealing. An optional bevel lip is available for uneven floors, accommodating gaps of up to 22mm.
System specification
| Property | |
|---|---|
| Possible door types (depending on options) | Single and double-leaf sliding glass doors |
| Profile size | 25 x 46 mm |
| Max. drop height | 5 – 18 mm |
| Sound absorption value | up to 44 dB at ground air 7 mm |
| Special features | Air flow 30 m³/h at ventilation length 1050 mm and pressure difference of 3.9 Pa |
| Profile material | Aluminium |
| Seal profile | high-quality silicone or high-quality self-extinguishing silicone |
| Standard lengths | 459mm, 584mm, 709mm, 834mm, 959mm, 1084mm, 1209mm, 1334mm, 1459mm |
| Non-standard lengths | Sizes up to 6m are available to special order |
| Can be shortened | max. 125 mm |
| Incl. accessories | Planet floor guide and cover cap for Planet KG-SL10, Planet stopping plate, type 1 (stainless steel) and cover plate |
