LVN20S Intumescent Air Transfer Grille

Non-Vision Fire + Smoke Resistant

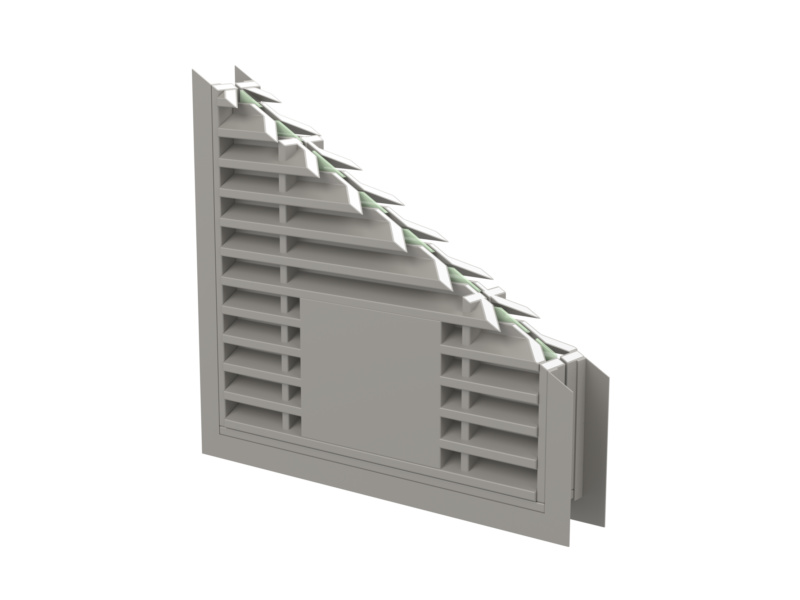

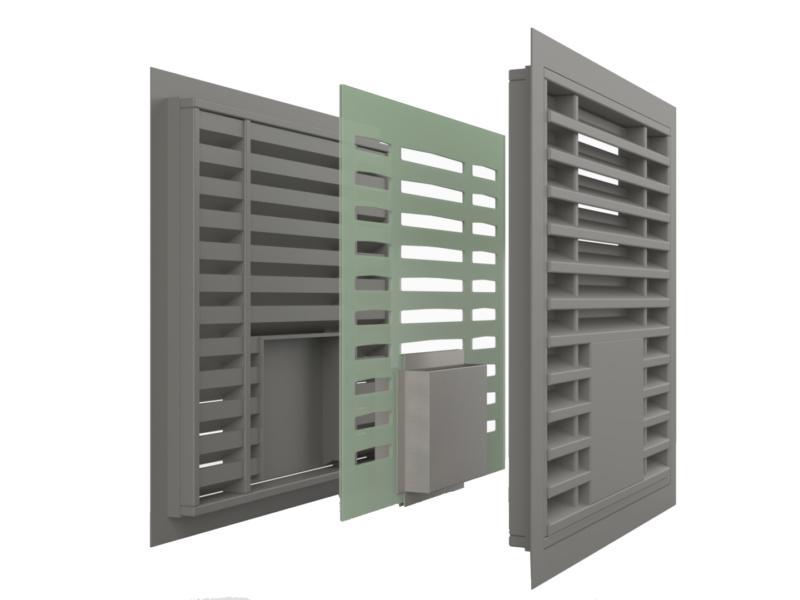

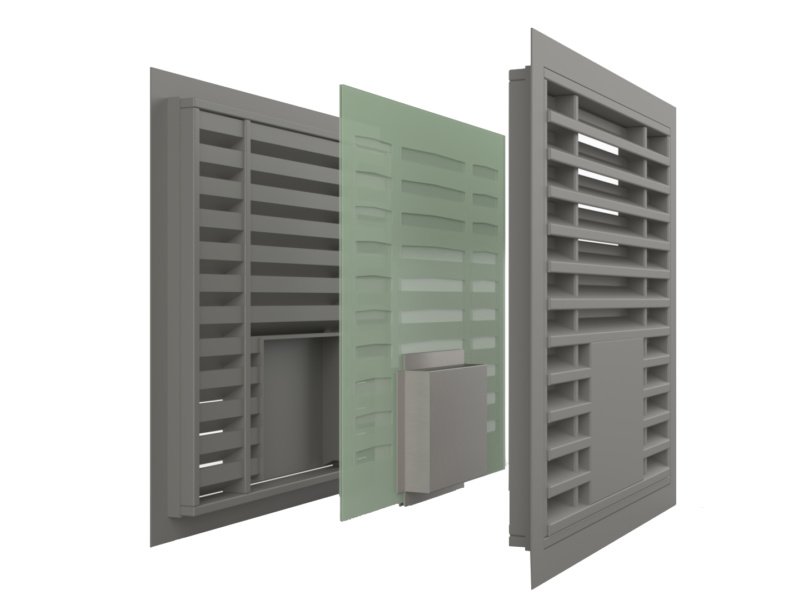

The LVN20S provides a unique solution to the problem of containing both fire and cold smoke in emergency conditions yet offering good air transfer through doors in everyday use. Using the same intumescent louvred slat configuration as the LVN20, but incorporating an electro mechanically operated smoke shutter mechanism. Can provide up to 60 minutes fire and smoke resistance.

System specification

Property

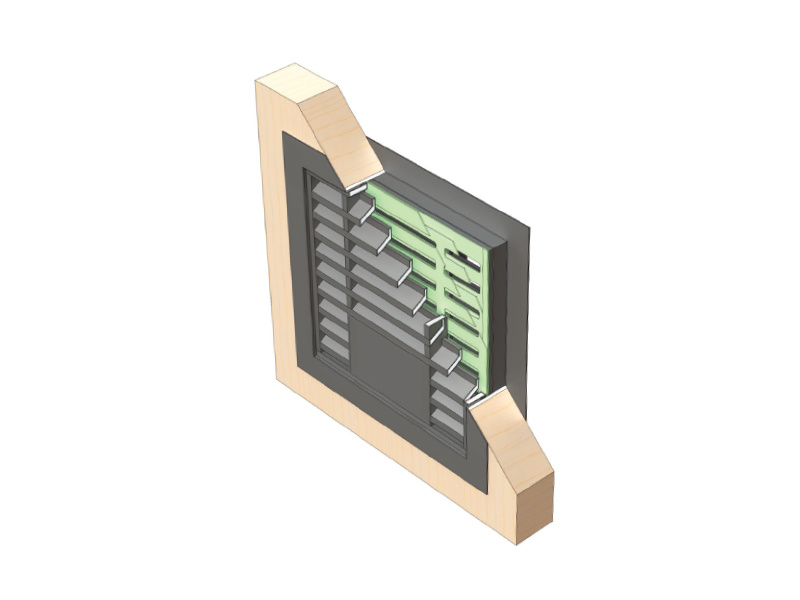

Application Suitable for doors. Please note: in applications where high levels of humidity or wetness are anticipated, please speak to our Technical Department for alternatives
Thickness 2 pieces x 20mm
Free area Approx 30% free area
Material Rigid PVC slats with an intumescent core. Steel flange. Electro mechanically operated smoke shutter mechanism
Finish Silver as standard
Use with Talkback damper control system. Conductor hinges. Optional Alarm Monitoring System (AMS) + battery backup
Test evidence Fire: BS 476-20 + 22: 1987. Smoke: BS 476-31.1: 1983 (shutterplate)
Performance Can be used to provide up to 60 minutes resistance to fire + cold smoke
CERTIFICATION
Certifire CF564
