LAS8009 si Drop Seal

face-fixed

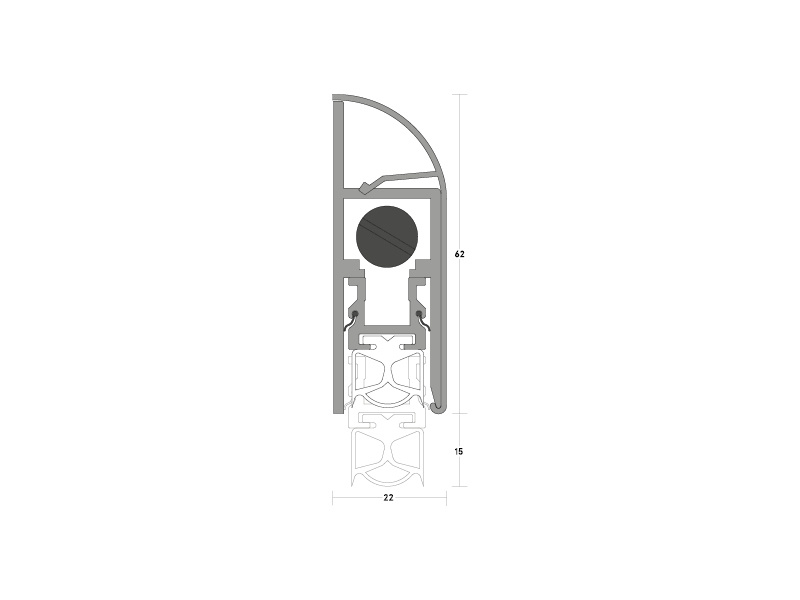

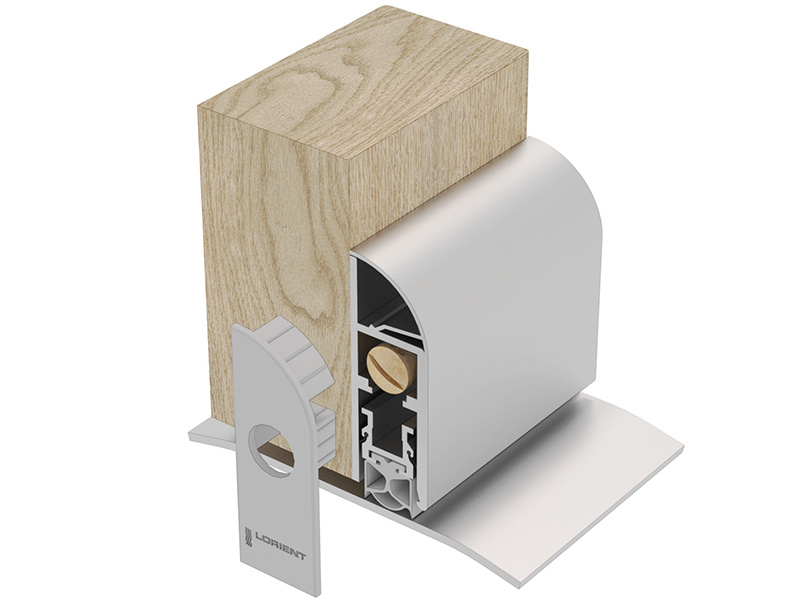

A heavy duty, face-fixed automatic drop seal with curved cover plate that conceals fixing screws and presents an exceptionally smooth external aspect. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection. Self-levelling on uneven floors; seal height can be adjusted independently of fixing screws.

Finish

System specification

Property
TEST EVIDENCE Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 31dB)
PERFORMANCE Meets smoke requirement: BS 9999: 2017
LOCATION Single swing, single + double leaf doors. For use on both right + left handed doors
MIN/MAX GAP SIZES 1mm/15mm
SEAL MATERIAL Black or grey silicone rubber
Standard finish Silver anodised aluminium cover plate with grey end caps and grey silicone rubber gasket as standard
Non-standard finish Bronze anodised aluminium cover plate with black end caps and black silicone rubber gasket are subject to non-standard charges and additional lead times
STANDARD LENGTHS 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 275mm
ADJUSTMENT Self-levelling on uneven surfaces – can be adjusted independently of the fixing screws
CERTIFICATION
UL R27972
