LAS8008 si Drop Seal
face-fixed

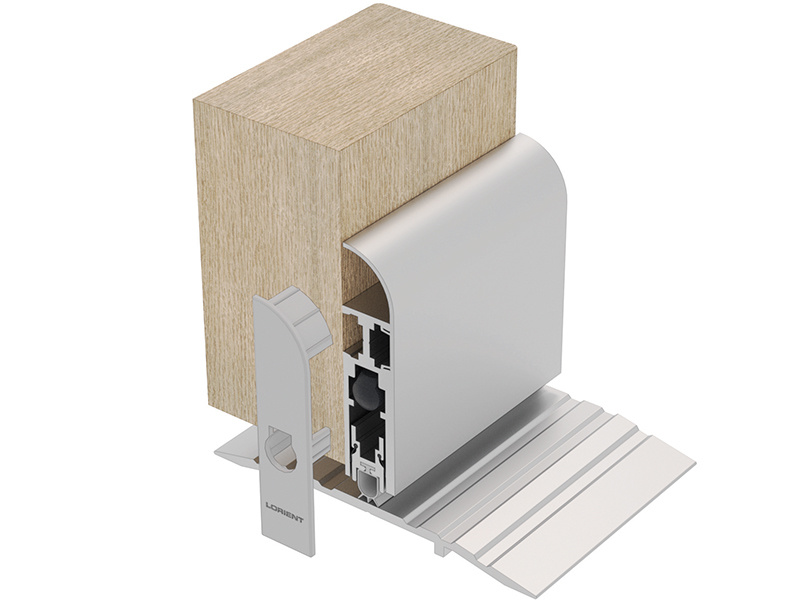

A slimline, face-fixed automatic drop seal with a curved cover plate for enhanced aesthetics. It features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces. Requires no power connection. Self-levelling on uneven floors, seal height can be adjusted independently of fixing screws. Suitable for upgrading existing doors.
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Smoke: BS 476-31.1: 1983 & BS EN 1634-3:2004 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 30dB) |
| PERFORMANCE | Meets smoke requirement: BS 9999: 2017 |
| LOCATION | Single swing, single + double leaf doors. For use on both right + left handed doors |

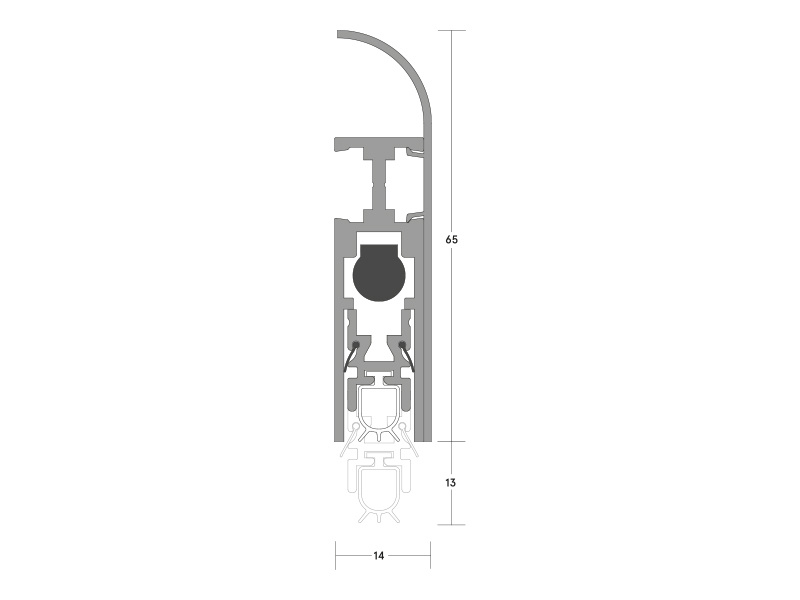

| MIN/MAX GAP SIZES | 1mm/13mm |
| SEAL MATERIAL | Grey silicone rubber |
| Standard finish | Silver anodised aluminium with grey end caps and grey silicone rubber gasket as standard |
| Non-standard finish | Other powder-coated colour finishes (non-standard - charges and lead times apply). Black end caps, and black silicone rubber gasket (non-standard - charges and lead times apply) |
| STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm |
| ADJUSTMENT | Self-levelling on uneven surfaces. Can be adjusted independently of the fixing screws |
