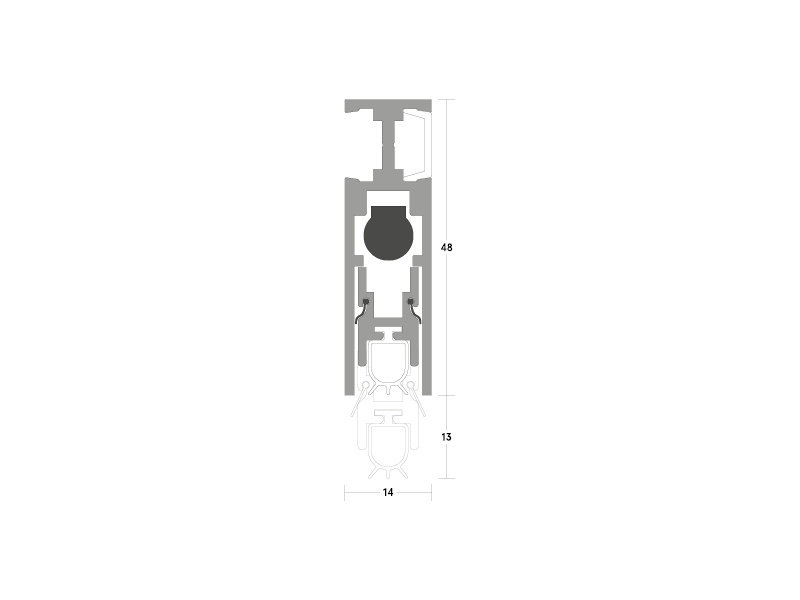

LAS8003 si Drop Seal
face-fixed

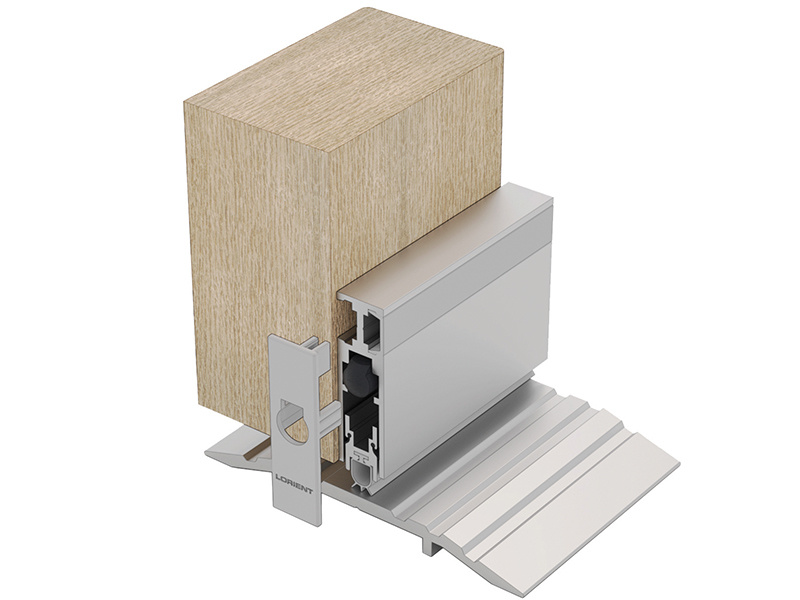

A slimline, face-fixed automatic dropseal. It features a high efficiency mechanism, which liftsthe seal clear of the floor as soon as the door is openedby a few millimetres; resulting in lower door operatingforces. Surface mounted application suitable forupgrading existing doors. Requires no power connection.Self-levelling on uneven floors; seal height can beadjusted independently of fixing screws.
Finish
System specification
| Property | |
|---|---|
| TEST EVIDENCE | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 33dB) |
| PERFORMANCE | Meets smoke requirement: BS 9999: 2017 |
| LOCATION | Single swing, single + double leaf doors. For use on both right + left handed doors |
| MIN/MAX GAP SIZES | 1mm/13mm |
| SEAL MATERIAL | Grey silicone rubber |
| Standard finish | Silver anodised aluminium with grey end caps and grey silicone rubber gasket as standard |
| Non-standard finish | Other powder-coated colour finishes (non-standard - charges and lead times apply). Black end caps, and black silicone rubber gasket (non-standard - charges and lead times apply) |
| STANDARD LENGTHS | 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm + 1235mm. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm |
| ADJUSTMENT | Self-levelling on uneven surfaces. Can be adjusted independently of the fixing screws |
| CERTIFICATION | |
| Certifire | CF5179 |
| UL | R27972 |
