LAS8001M Drop Seal

Mortised

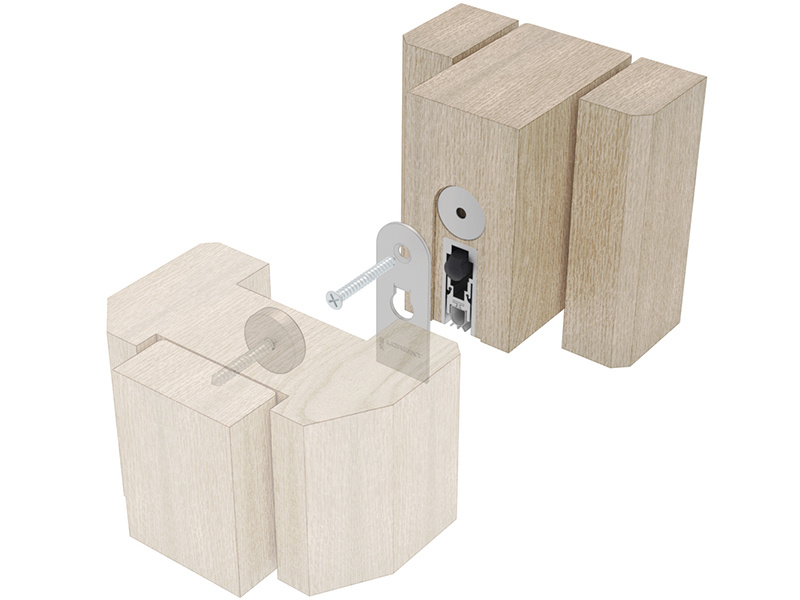

A slimline, mortised automatic drop seal for timber sliding doors. The end plate cleverly conceals a magnet, which engages with a button in the frame, to assist the door closure and ensures the gasket remains in the dropped position without forcing the door open. The seal features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces.

Finish

System specification

Property
LOCATION Sliding doors
MIN/MAX GAP SIZES 1mm/13mm
SEAL MATERIAL Grey or black silicone rubber
Standard finish Silver anodised aluminium with silver end plates, and grey silicone rubber gasket as standard. Chrome finish magnetised button
Non-standard finish Silver anodised aluminium with bronze end plates, and black silicone rubber gasket are subject to non-standard charges and additional lead times
STANDARD LENGTHS 335mm, 435mm, 535mm, 635mm, 735mm, 835mm, 935mm, 1035mm, 1135mm and 1235mm. Sizes above 1235mm are available on request. Note: Each length can be cut back to the next size down. The 335mm can be cut back to 255mm.
ADJUSTMENT Self-levelling on uneven surfaces. Can be adjusted independently of the fixing screws
