DS Fire, Smoke + Acoustic Seal

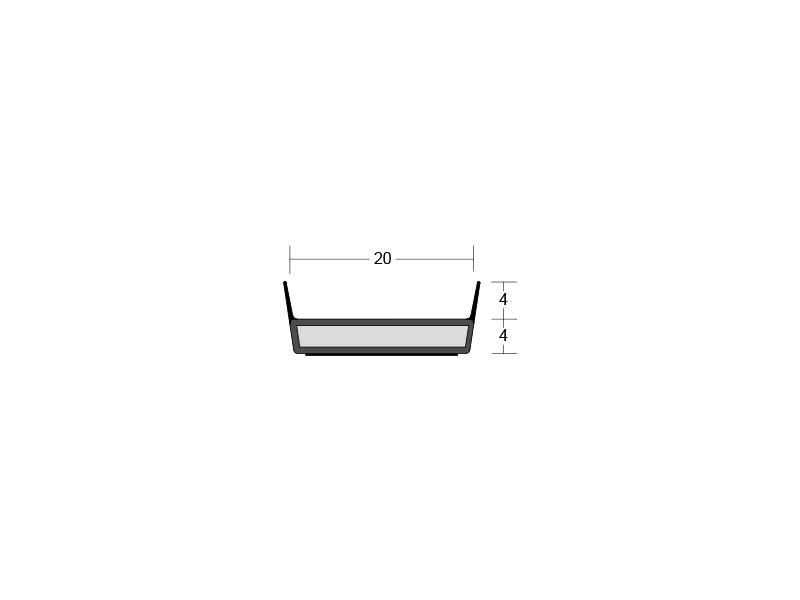

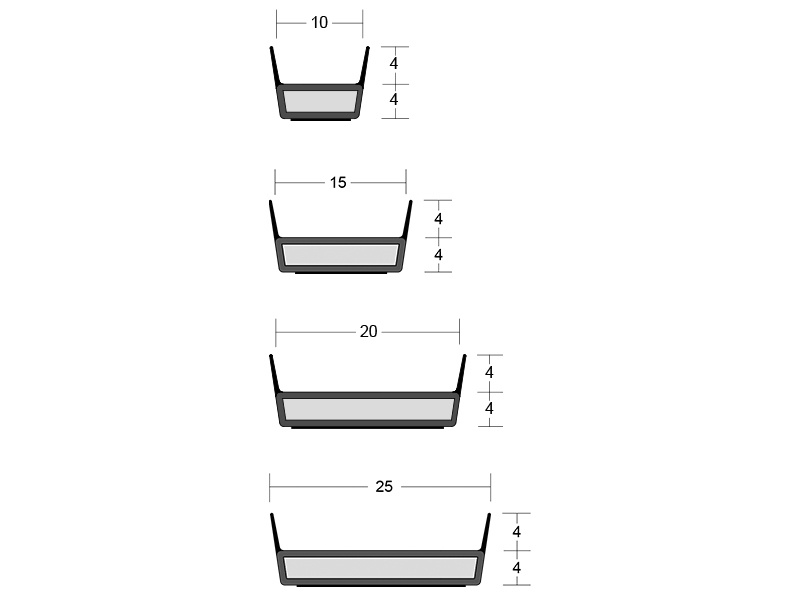

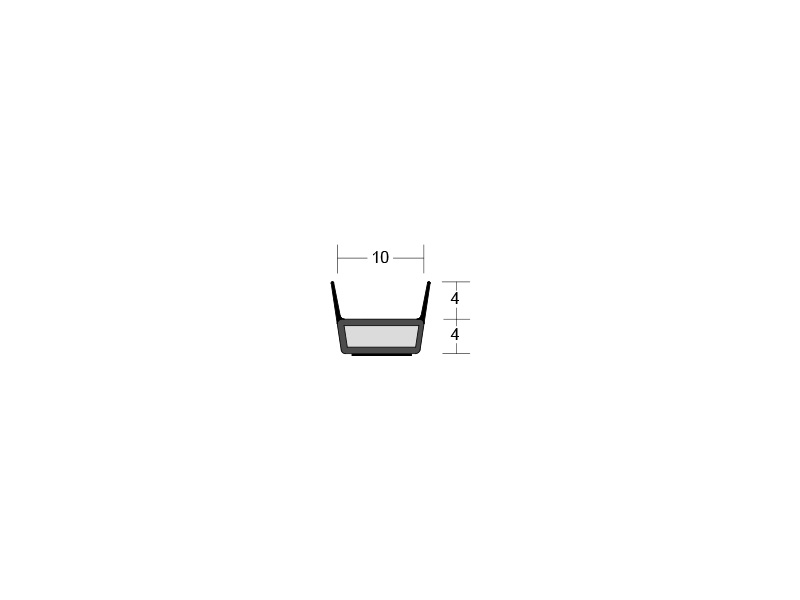

LP1004DS, LP1504DS, LP2004DS
Our DS door seal offers the ultimate in fire, smoke + acoustic protection, with the added benefit of thermal containment. Its unique design means that whichever way round the product is installed, the seal can always be fitted in the correct place, maintaining the integrity of the acoustic + smoke seal at the ironmongery points.
A range of sizes to cover 30, 60, 90 + 120 minute applications, the DS seal also includes integral antimicrobial protection.
Note: The limitations of the printing process mean the colours + finishes shown here may not be exactly the same as the seals supplied. Request free samples to assist in colour matching.
Colour
System specification
| Property | |
|---|---|
| LOCATION | Single + double leaf doors |
| MIN/MAX GAP SIZES | 3mm/4mm |
| SEAL MATERIAL | PVC encased sodium silicate + flexible elastomeric fins |
| FINISHES | Available in a range of standard colours, with black fins - to blend or contrast with the doorset as required. White fins are also available to special order |
| STANDARD LENGTHS | 1m + 2.1m. Other lengths to special order |
| TEST EVIDENCE | Fire: BS 476-22:1987 & BS EN 1634-1:2008. Smoke: BS 476-31.1: 1983 at ambient temperature. Assessment: CNA/F14171. Acoustic: BS EN ISO 10140-2:2010. Durability: 100,000 cycles |
| Performance | Meets smoke requirement: BS 9999: 2017 |
| CERTIFICATION | |
| Certifire | CF330 + CF341 |
| BBA | 92/2841 |
| IFC | FRPP454 |
