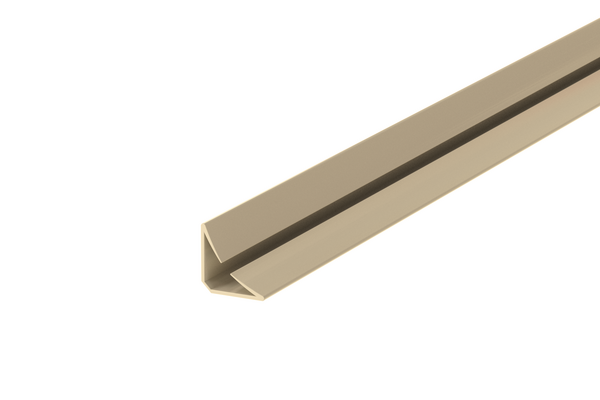

Batwing® Perimeter Seal

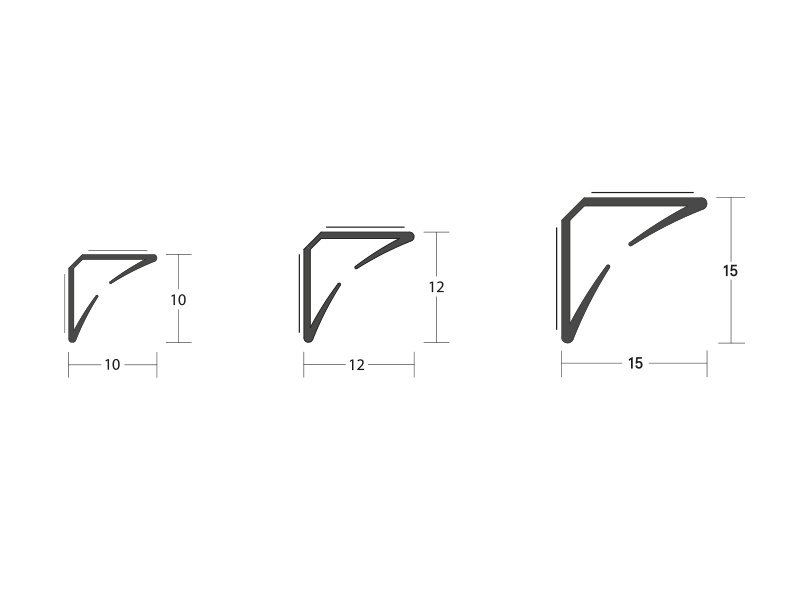

LAS1010, LAS1212 + LAS1015
The LAS1010, LAS1212 & LAS1015 Batwing® smoke and acoustic seals are designed for easy installation with a simple peel and stick feature. The double fin design provides a reliable barrier against smoke and sound while minimising resistance when opening and closing the door. Made from a flexible elastomeric material, the Batwing® seals boasts long-lasting performance as the fins spring back to their original shape after each use. Suitable for both single and double leaf doors on the head and jambs, this Batwing® seal installs with minimal disruption, offering a simple solution for smoke and acoustic containment.
System specification
| Property | LAS1010 | LAS1212 | LAS1015 |
|---|---|---|---|
| TEST EVIDENCE | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 44dB). Durability: minimum of 100,000 cycles | Smoke: BS 476-31.1: 1983 at ambient temperature; BS EN 1634-3:2004 at ambient and medium temperature (LAS1212); effective smoke seal up to 200°C. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 44dB). Durability: minimum of 100,000 cycles | Smoke: BS 476-31.1: 1983 at ambient temperature. Acoustic: BS EN ISO 10140-2: 2010 (up to Rw 44dB). Durability: minimum of 100,000 cycles |

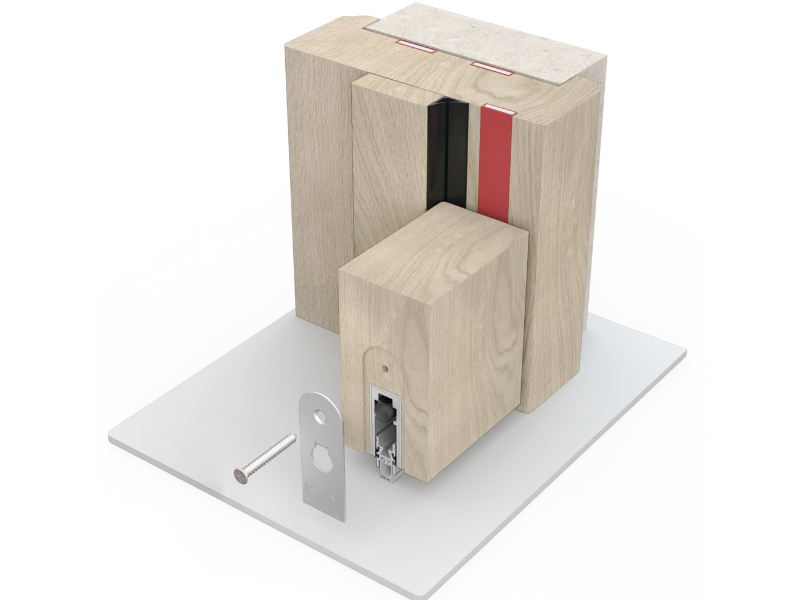

| LOCATION | Head + jambs of single + double leaf doors | Head + jambs of single + double leaf doors | Head + jambs of single + double leaf doors |
| MIN/MAX GAP SIZES | 3mm/4mm | 3mm/4mm | 3mm/4mm |
| SEAL MATERIAL | Co-extruded rigid back PVC with flexible fins | Co-extruded rigid back PVC with flexible fins | Co-extruded rigid back PVC with flexible fins |

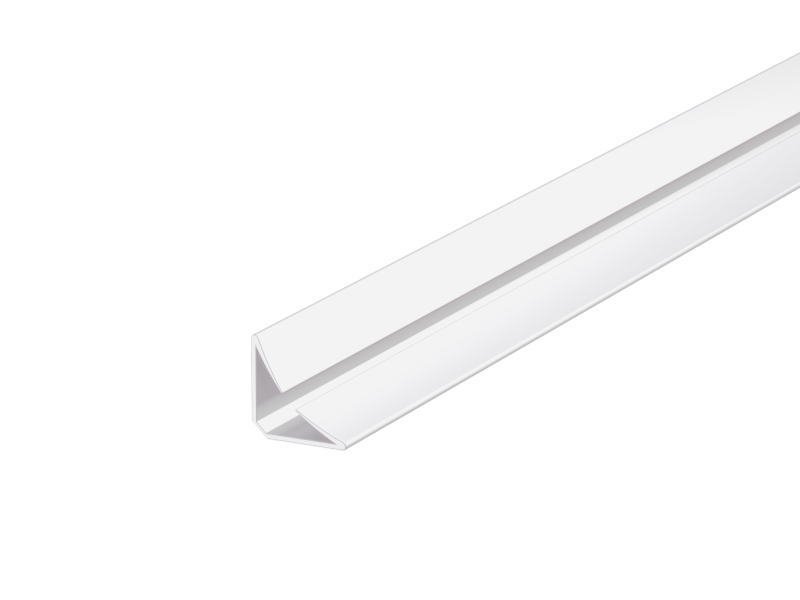

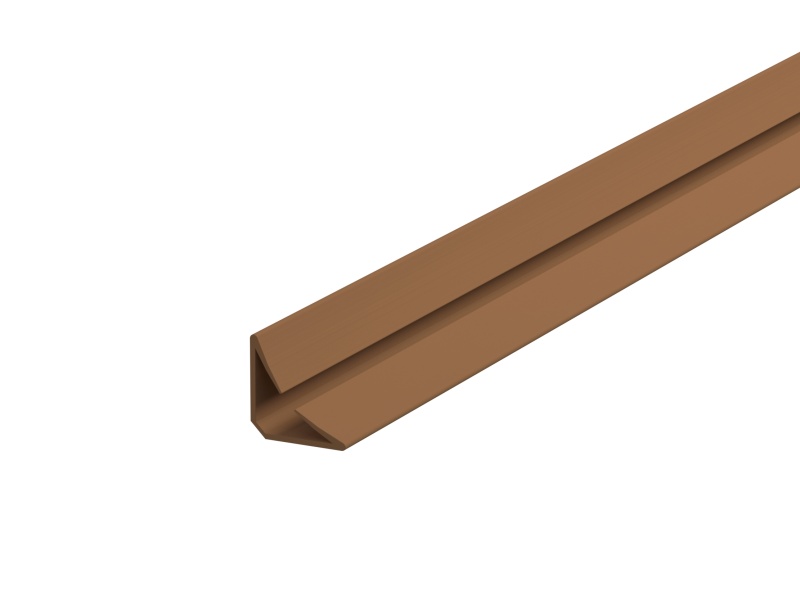

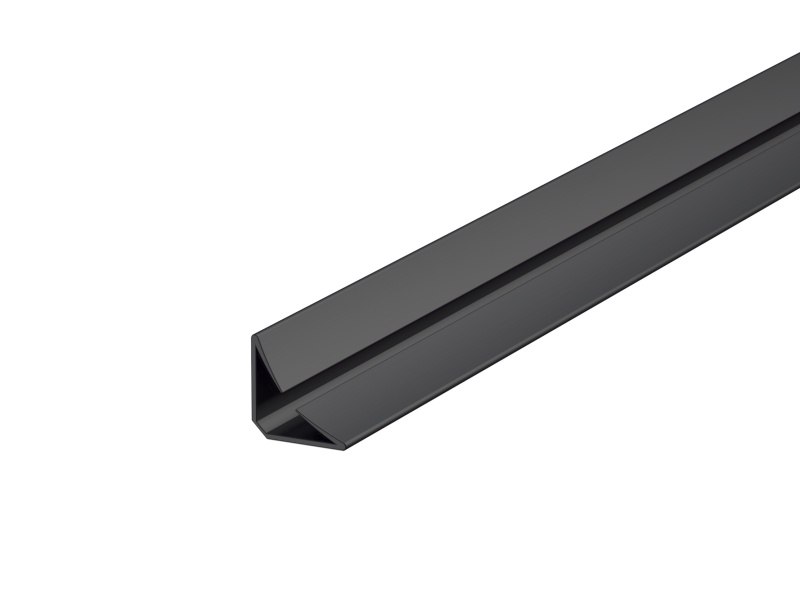

| Standard colours | White, black, dark brown, light brown + grey | White, black, dark brown, light brown + grey | White, black, dark brown, light brown + grey |

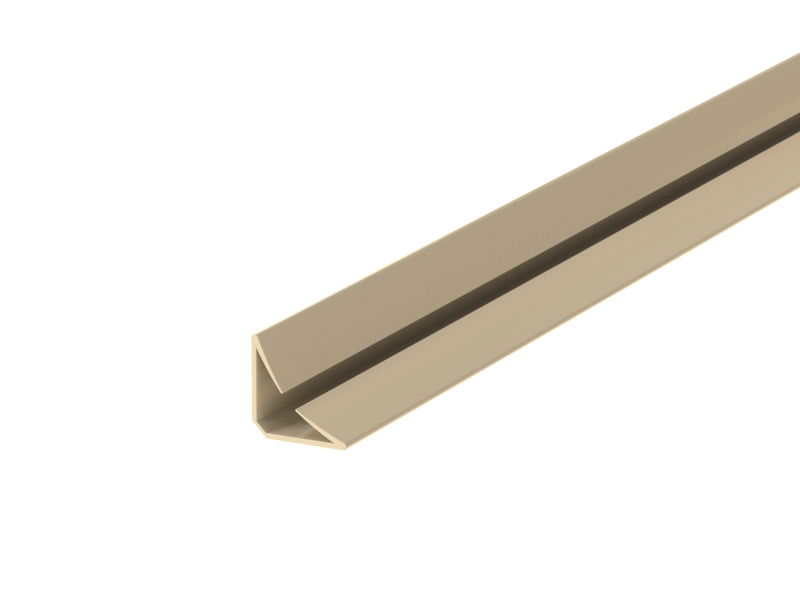

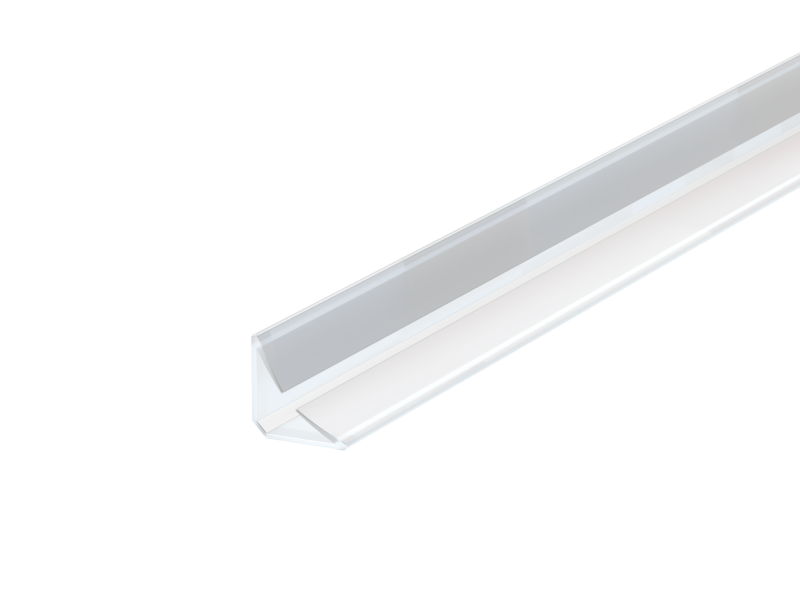

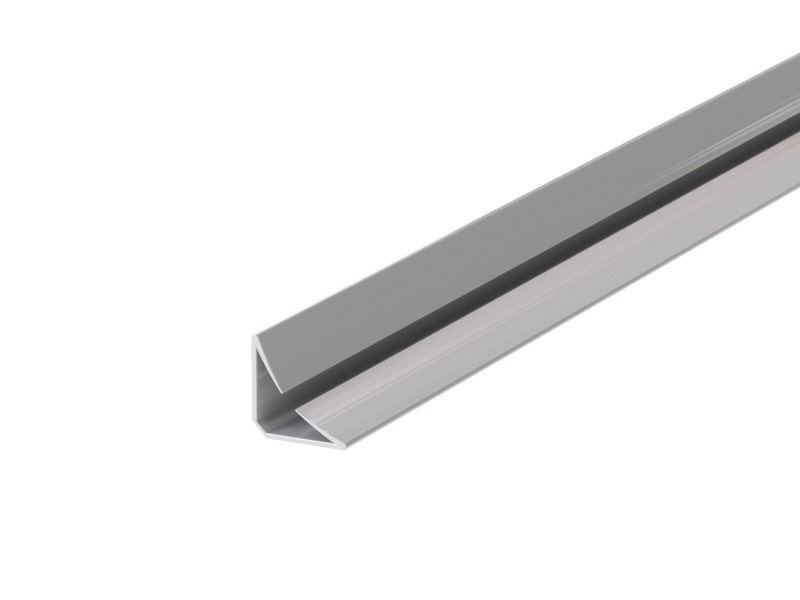

| Non-standard finishes | Cream, red, silver + clear subject to MOQ | Cream, red, silver + clear subject to MOQ | Cream, red, silver + clear subject to MOQ |
| STANDARD LENGTHS | 1m + 2.1m. Single doorset pack consisting of 1 x 1m + 2 x 2.1m. Other lengths to special order | 1m + 2.1m. Single doorset pack consisting of 1 x 1m + 2 x 2.1m. Other lengths to special order | 1m + 2.1m. Single doorset pack consisting of 1 x 1m + 2 x 2.1m. Other lengths to special order |
| CERTIFICATION | |||
| Certifire | CF5179 | CF5179 | CF5179 |
| UL | R27972 | R27972 | R27972 |
| BBA | - | 92/2841 | - |
