AAS4553 Threshold Ramp
19mm Ramp

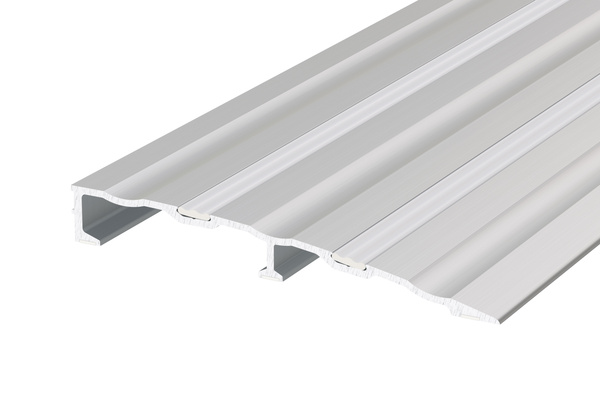

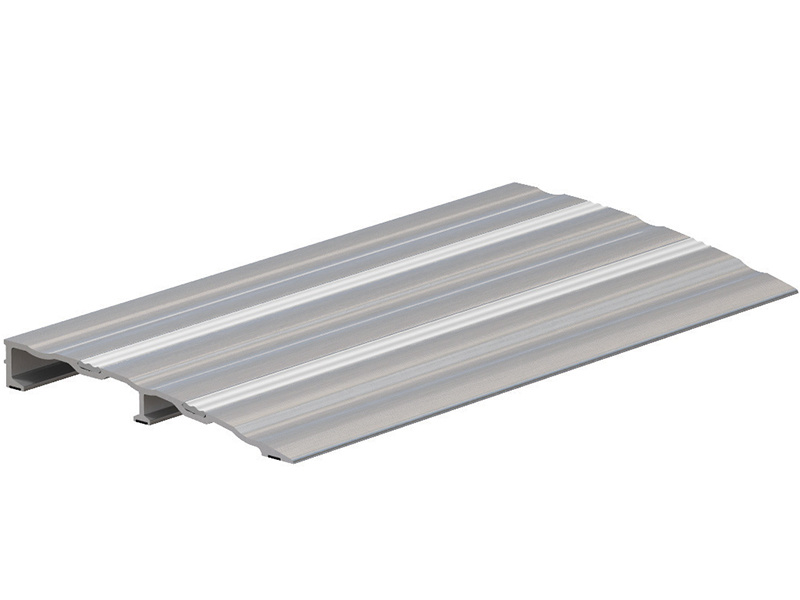

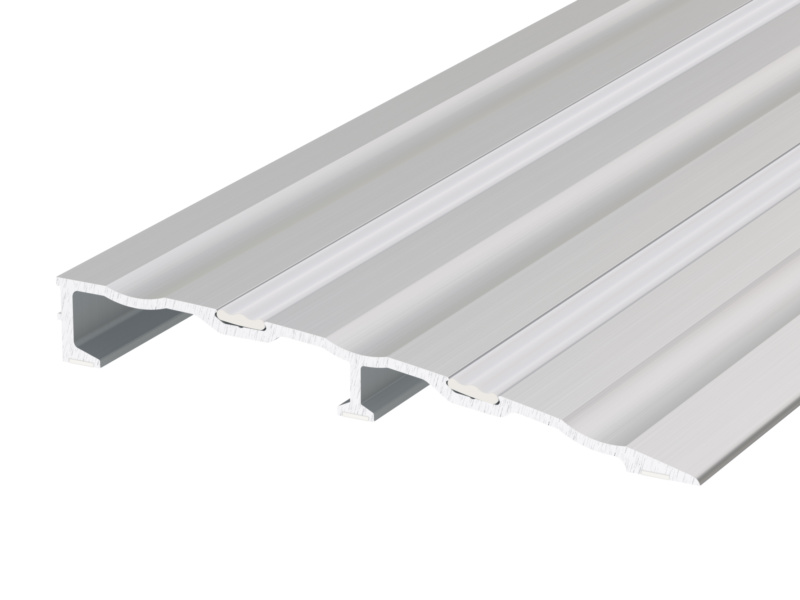

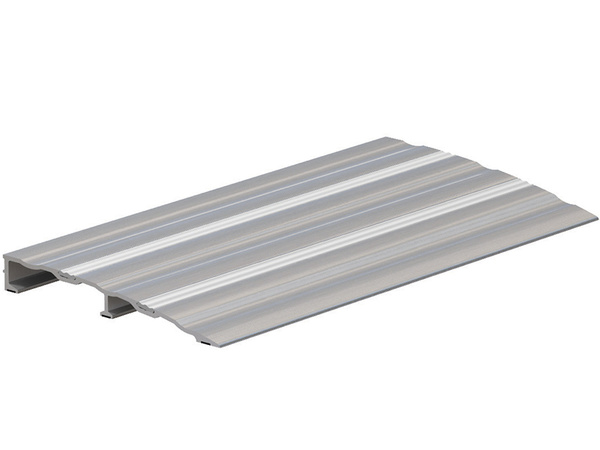

A 150mm wide threshold ramp for use in buildings where wheelchairs and trolleys are used, or to compensate for uneven floors. Reversible tread strips provide greater traction. Unique ‘scoops’ further enhance grip for foot or wheeled traffic.
Finish
System specification
| Property | |
|---|---|

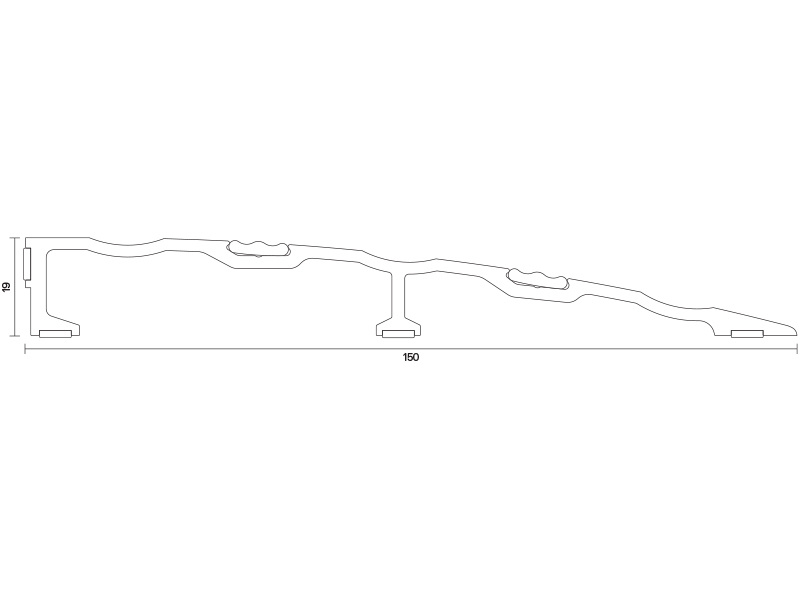

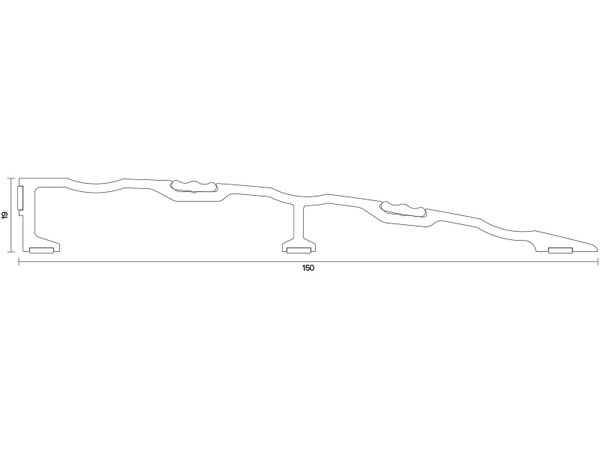

| Ramp height | 19mm |
| Characteristics | Contributes towards smoke, weather, draught, and light containment when fitted with a suitable threshold seal. |
| Location | Single and double swing doors |
| Material | Aluminium with two flexible thread strips |
| Standard lengths | 1m + 2.1m. Other lengths to special order |
| Standard finish | Silver anodised aluminium with grey tread strips |

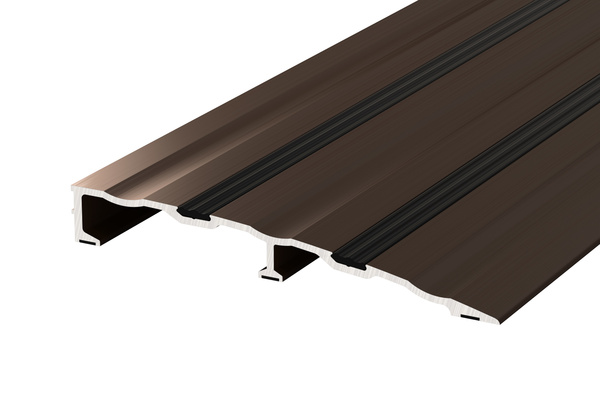

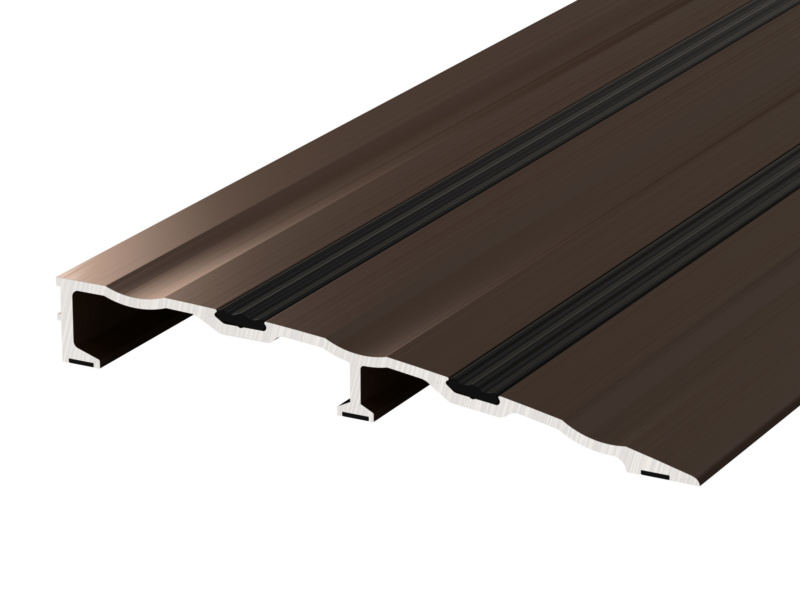

| Non-standard finish | Bronze anodised aluminium with black tread strips and other powder-coated colour finishes are subject to non-standard charges and additional lead times |
| CERTIFICATION | |
| UL | R27972 |
